High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type

Name: High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
Brand: Chuanglixun
Price: 268.56 USD

Cheap High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type for sale

Model Number : SC-APC-36

Place of Origin : Guangdong, China

Brand Name : Chuanglixun

Certification : ce

MOQ : 1

Price : $268.56-365.16

Material : Hardened stainless steel2316

Connector Type : SC APC Connector

Size : 174*174*26mm

Ferrule Diameter : 2.50mm

Net Weight : 1.5 kgs

Gross Weight : 2.0 kgs

No. of Fiber : 36 Positions

Insertion Loss : ≤0.20dB

Return Loss : ≥60dB (APC)

End-face : APC

Capacity : 36 positions

Radius of Curvature : 5-12mm

Apex Offset : 0-50μm

Fiber Height : -100~+50μm

Angle : 8.00+/-0.50°

Contact Now

High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type

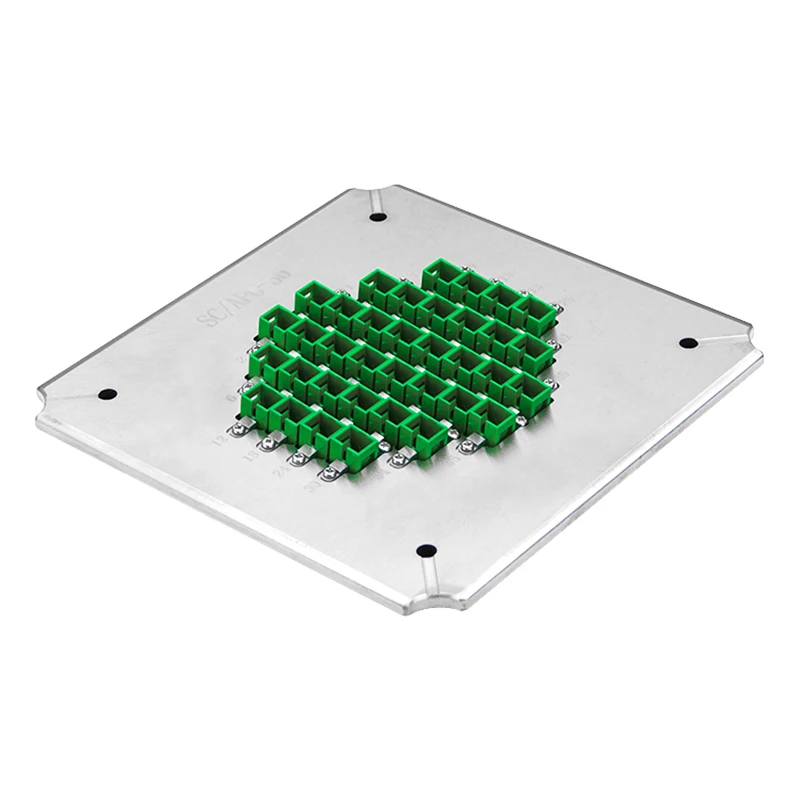

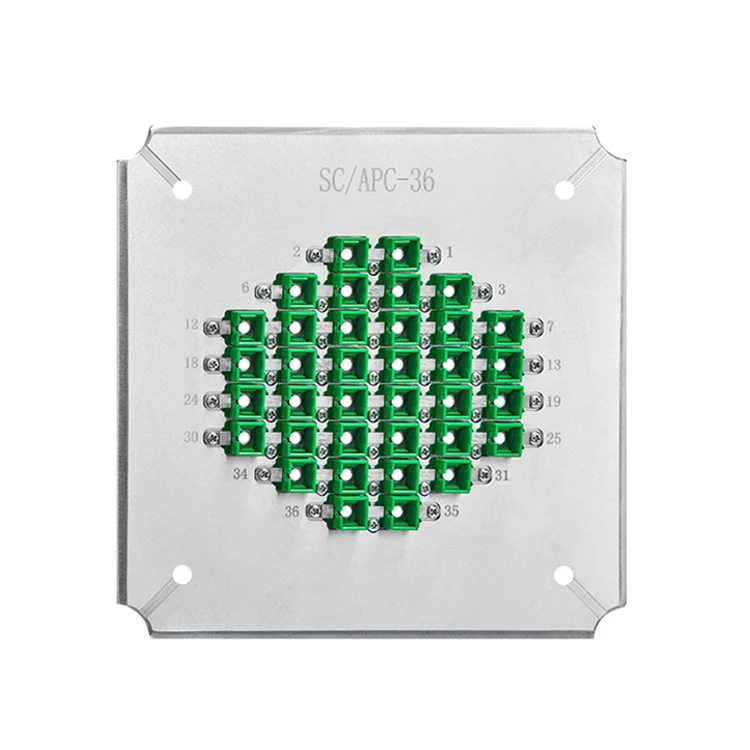

Fiber Optic 36 Connectors SC APC Polishing Jig Polishing Fixture

Product Description

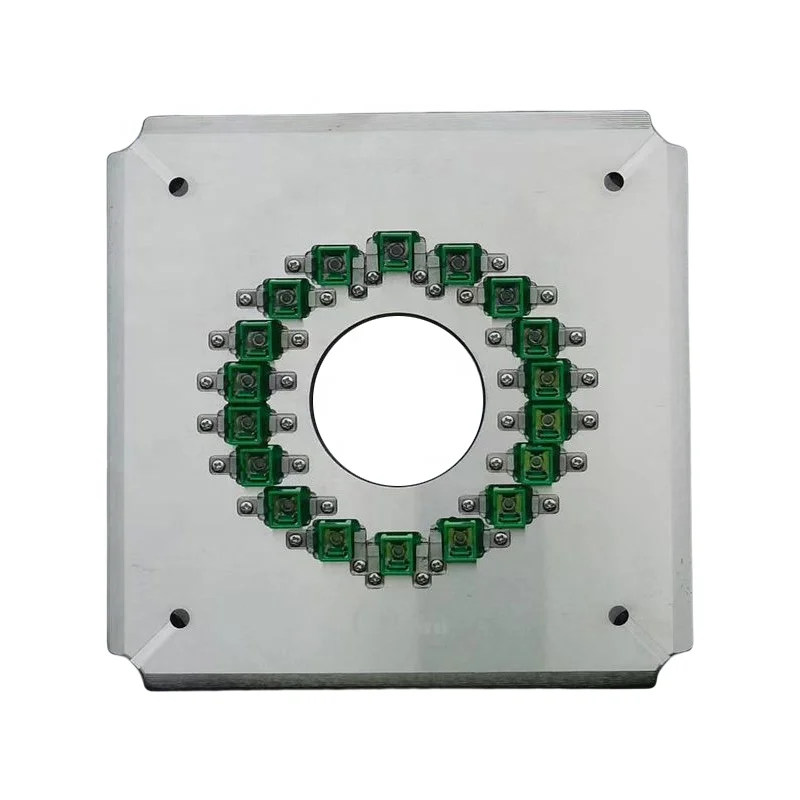

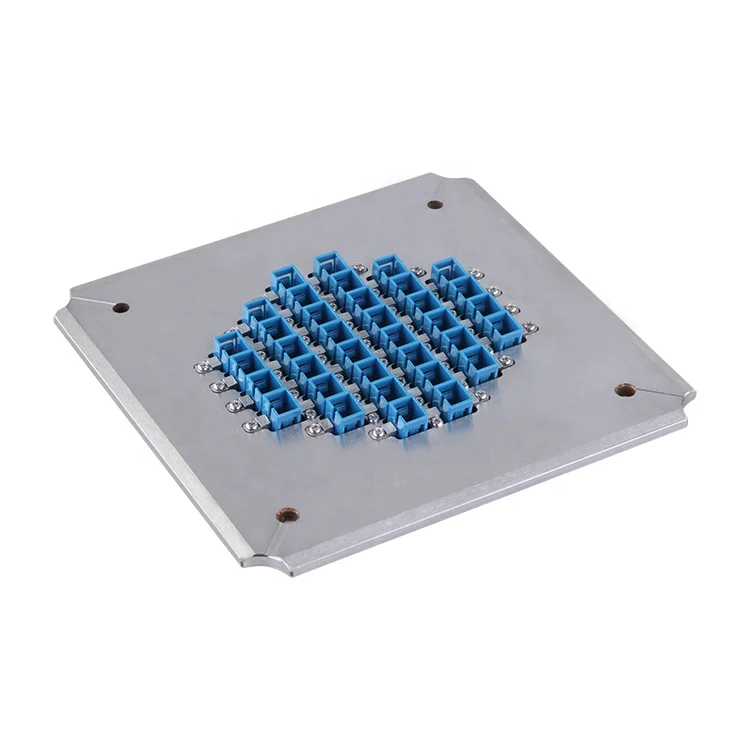

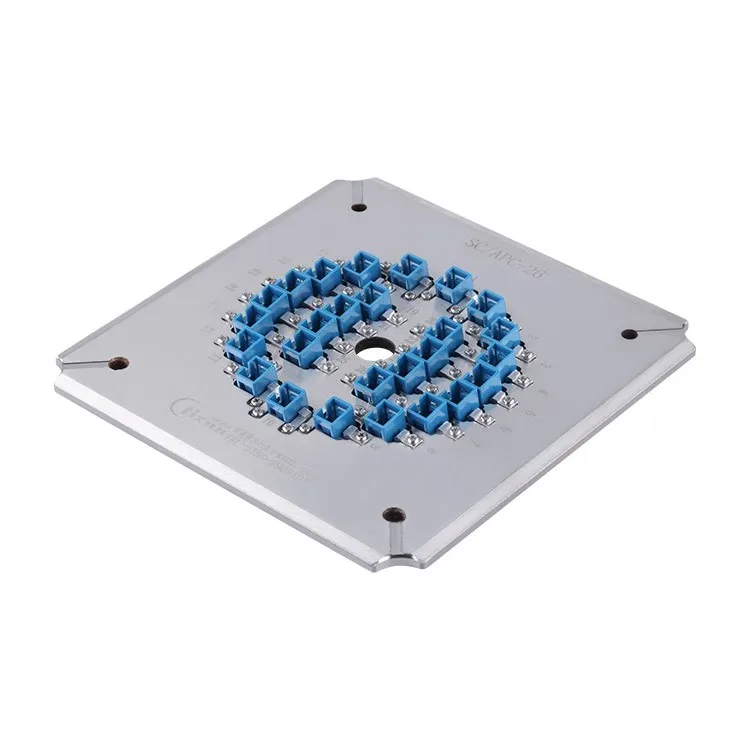

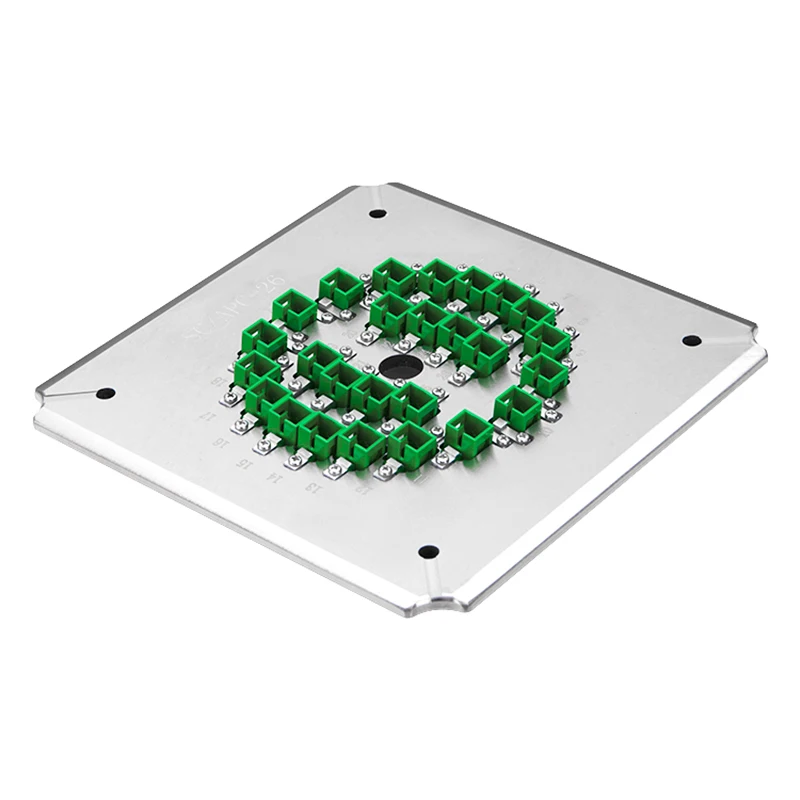

This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

Features

1.Designed for SC/APC connectors. 2.Easy to change jigs, simple and flexible to operate. 3.High efficiency, polishing Max 26 or 36 connectors in one cycle.The first pass yield for end face quality reach 98%～100% 4.The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), 5.APC return loss ≥60dB , Insertion loss ≤0.20dB ( typical) 6.The accessories on the fixture can be replaced, Greatly extend the service life.

Specification

Model	SC-APC-18	SC-APC-26	SC-APC-36
Brand	CLX	CLX	CLX
Connector Type	SC APC	SC APC	SC APC
End-face	APC	APC	APC
Ferrule Diameter	2.5mm	2.5mm	2.5mm
Capacity	24 positions	26 positions	36 positions
Insertion Loss	≤0.20dB	≤0.20dB	≤0.20dB
Return Loss	≥60dB (APC)	≥60dB (APC)	≥60dB (APC)
Application	Polishing assembled SC APC connectors	Polishing assembled SC APC connectors	Polishing assembled SC APC connectors
Material	Stainless Steel S136
Dimension (LWH)	17417426 mm
Net Weight / Gross Weight (kg)	1.5 kgs / 2.0 kgs
Suitable machines	CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines

Polishing Effect

1. Polished Connector Ferrule Faces:

Fiber End Face

High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible

2. ILRL Test Result:

Connector Type	SM/UPC	SM/APC	MM/UPC
Insertion Loss	≤0.20dB	≤0.20dB	≤0.50dB
Return loss	≥55dB	≥60dB	≥30dB

3. Geometry Test Result:

NO.	Parameters	UPC Criterion	APC Criterion
1.	Radius of Curvature	5-25mm	5-12mm
2.	Apex Offset	0-50μm	0-50μm
3.	Fiber Height	-100~+50μm	-100~+50μm
4.	Angle	n/a	8.00+/-0.50°
