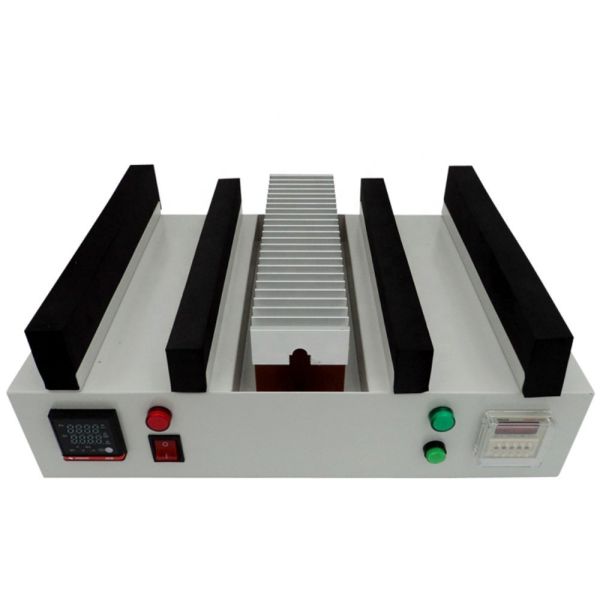

Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision

Name: Horizontal Type Fiber Optic Curing Furnace with 40 300 Heating Temperature and 1 Control Precision
Brand: Chuanglixun
Price: 170.65 USD

Cheap Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision for sale

Model Number : CLX-D01

Place of Origin : Guangdong, China

Brand Name : Chuanglixun

MOQ : 1

Price : $170.65-180.25

Machine Size : 420*320*140(mm)

Accuracy : +/- 1 ℃

Power Consumption : 800w

Heating Time : 99.99 hours adjustable

Net Weight : 9kg

Heating Temperature : 40 ~ 300 ℃

Input Voltage : 100~120VAC, 50Hz / 200-240VAC, 50Hz

Dimensions : 425x325x150mm

Control Precision : 1℃

Processing Capacity : 100 ceramic ferrules or 50 fiber optic connectors

Suitable Connectors : SC/FC/ST/LC/E2000/MU (1.25MM/2.5MM Ceramic ferrule)

Operating Voltage : AC220V

Working Frequency : 50-60Hz

Temperature Range : 20℃ 〜 300℃

Heating Modes : Continuous heating or Timing alarm

Contact Now

Fiber optic Equipment Horizontal type curing furnace for optical fiber patch cord

Specifications:

Net weight	8 KG
Dimensions	425x325x150mm
Heating temperature (Celsius)	20℃ 〜 300℃
control precision (Celsius)	1℃
One-time processing capacity	100 ceramic ferrules or 50 fiber optic connectors
Suitable for fiber optic connector models	SC/FC/ST/LC/E2000/MU The optical fiber connector（1.25MM/2.5MM Ceramic ferrule)
Operating Voltage	AC220V
working frequency	50-60Hz
Heating time	1 minute-99.99 hours
Application	800w

Horizontal Type Fiber Optic Curing Furnace with 40 ~ 300 ℃ Heating Temperature and 1 ℃ Control Precision

Feature:

●According to the specific needs of the production of optical fiber connectors and specially elaborate design, to avoid fiber breaking, fiber drawing and inconvenient inspection and other problems. ●Free setting of reference temperature, humidity automatic adjustment, controllable temperature 0℃ ~ 300℃, temperature control accuracy up to 1℃ heating time adjustable. ●Two control modes are available A, continuous heating mode for a long time continuous heating, constant temperature, controlled by the main switch of the power supply. B. Timing alarm mode Timing buzzing alarm, keep heating.Controlled by the time switch, press the reset button and reschedule.

Description:

Fiber optic connector heating curing furnace is suitable for fiber optic connector manufacturers, used for heating and curing all kinds of fiber optic connectors.It can simultaneously cure 100 core joints and 42 integrated joints at one time respectively.Adopt Japanese electronic component control, temperature control is stable.Temperature controller with PID function, free setting of the benchmark temperature, temperature control accuracy up to 1℃;The heating time is adjustable.

Get a free Quotation via Us >>>GO

1.Are you a factory or a trader？

......we are factory.

2.What is your MOQ?

......MOQ 1 piece.

3.Do you provide sample services？
......Yes, we will provide samples.

4.How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5.How do we pay?

......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services？

......Yes, we provide customized services, According to customer requirements and description.
